[US EU Warehouse]AOOSTAR AG01/ AG02 EGPU Dock with OCulink Port Built-in Huntkey 800W Power Supply Supports TGX interface hot-swap

Note:
This external GPU dock does not support Mac computers.
This external GPU may have compatibility issues with Minisforum machines, including the GPD G1.
It supports ASUS ROG handheld devices from the second generation onwards. Computers with CPUs prior to the 7840U series may have compatibility issues; it is fully compatible with CPUs from the 7840U series and later, such as the  8840, and so on.
Please note that under power-on conditions, do not hot-plug or unplug the OCulink cable, as there is a risk of damaging the computer.

AG02 Comparison between the initial version and the upgraded version:

1. USB4 port only supports data transfer, not power supply for devices 👉→ USB4 port supports data transfer and also provides 100W power supply for devices, saving more desktop space.
2. 350-400W power consumption 👉→ Upgraded to 800W power consumption to accommodate more and more EGPUs.
3. Silver Metal Case 👉→ Gray Metal Case

Caveats:

1) The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
(2) The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.
3）The built-in power supply is for Dock use only, please do not use it for other purposes.
4）Hot plugging and unplugging is only available for TGX devices.

Main Features:

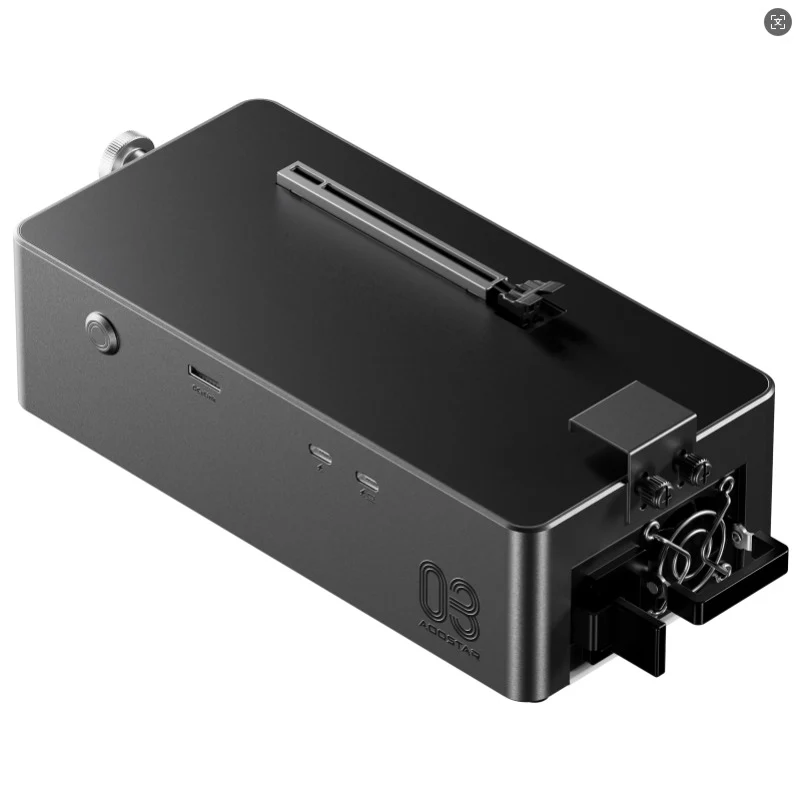

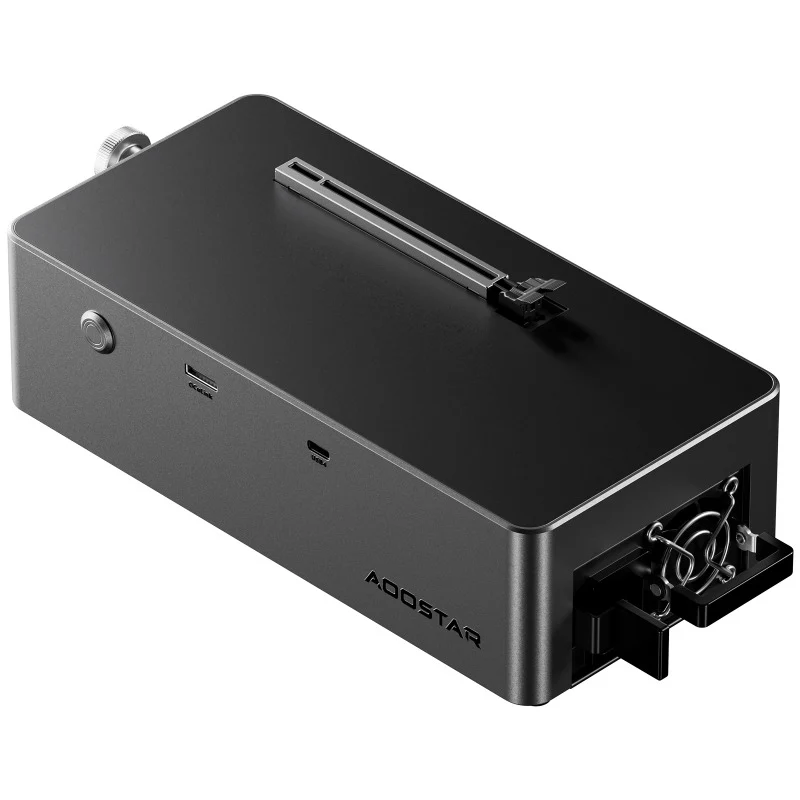

AOOSTAR AG02 GPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, 1.5KG, and the graphics card is not limited in length.

800W Power:

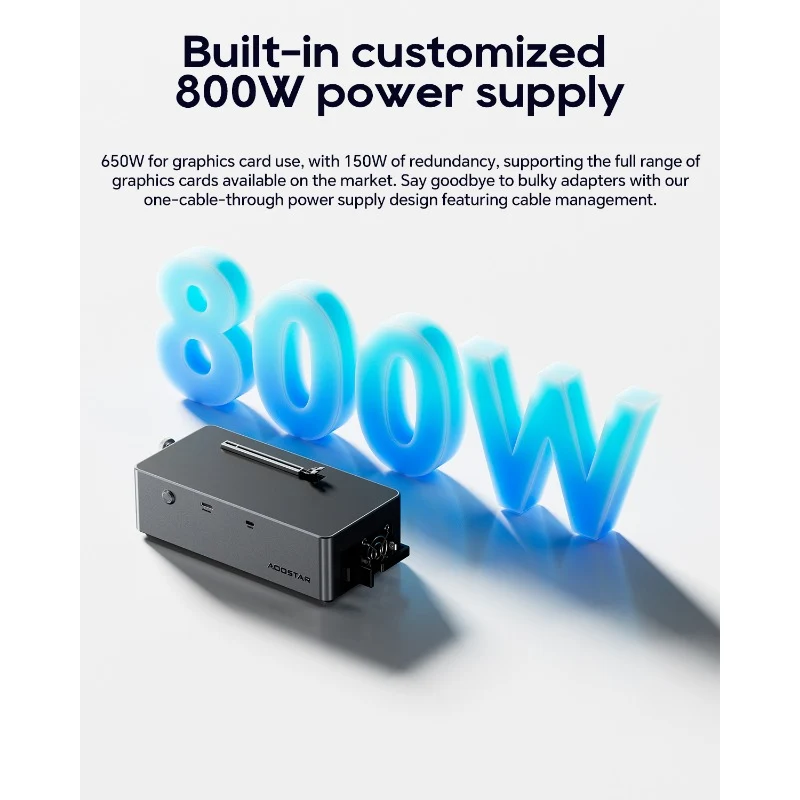

AOOSTAR AG02 has a built-in customized Huntkey 800W power supply, which can realize the power supply one-line communication and comes with a hub design.

Compatible with

 AOOSTAR AG02 is compatible with most of the EGPUs on the market today.

OCuLink & TGX Ports

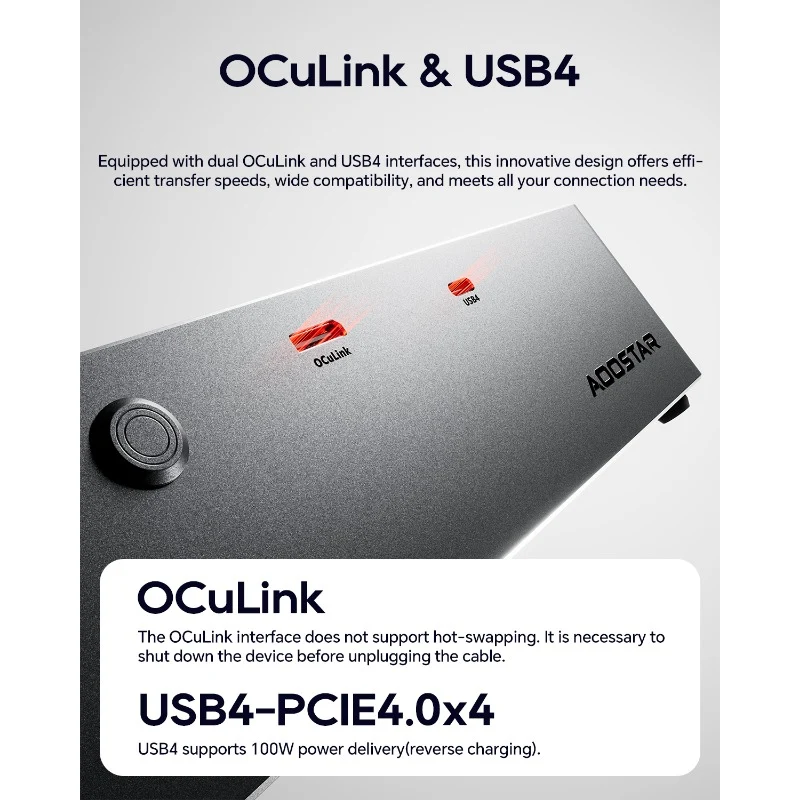

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Specification:

Power: 800W
Interface configuration:  1 OCuLink interface, 1 X USB4 port ）2 x 8-pin graphics card power connectors

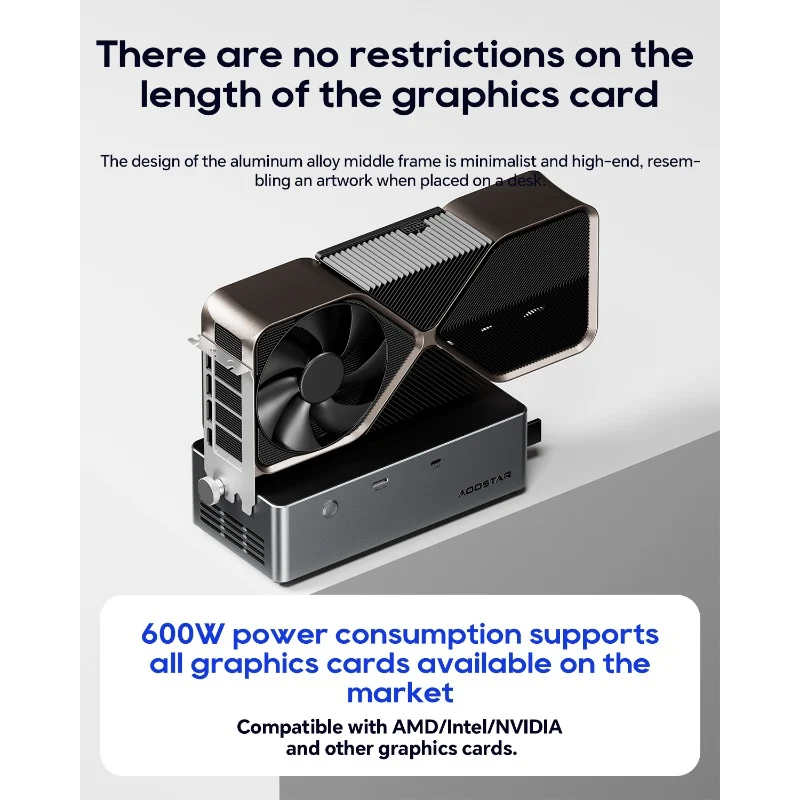

Device support:  Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input:  AC 220V~ 50/60Hz
OS: Support Windows (Win 11 22h2 or higher recommended)

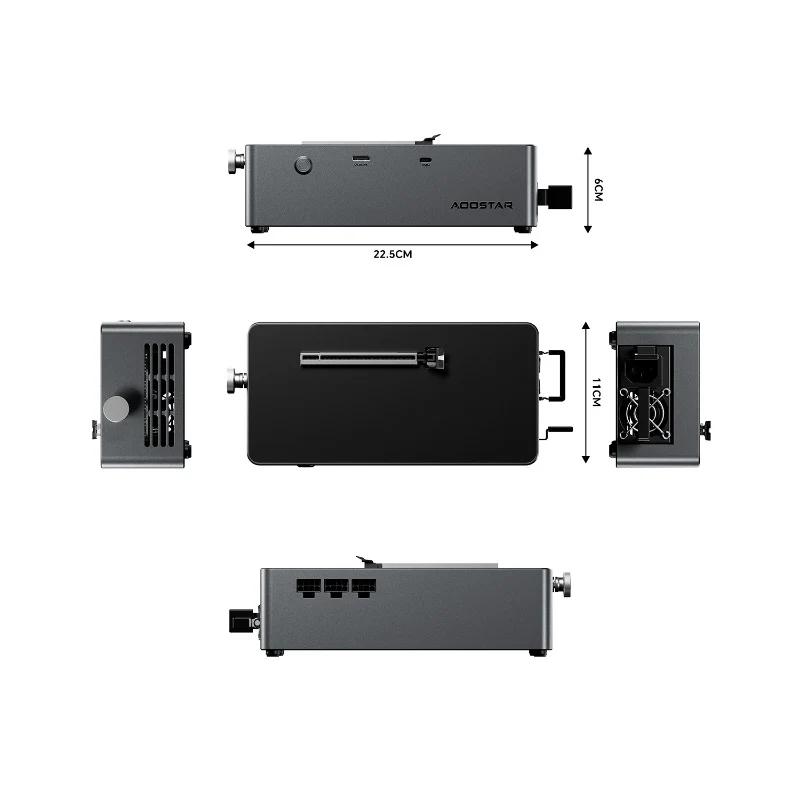

Size:  22.5CM*11CM*6CM

What In Box

• 1 x AOOSTAR AG02 EGPU Dock
• 1 x Oculink cable
• 1 x Power supply
• 2 x Switch Cable
• 1 x USB4 cable
• * The GPU is not included.
