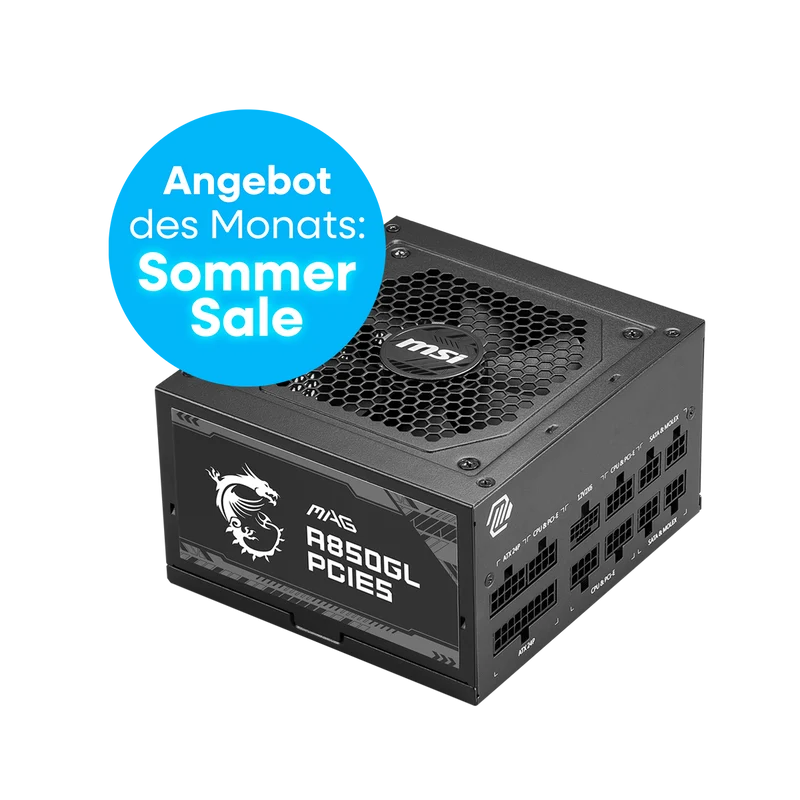

MSI CB Desktop PC Netzteil ATX 850Watt 80 Plus Gold MAG A850GL PCIE5
Beschreibung
MAG A850GL PCIE5

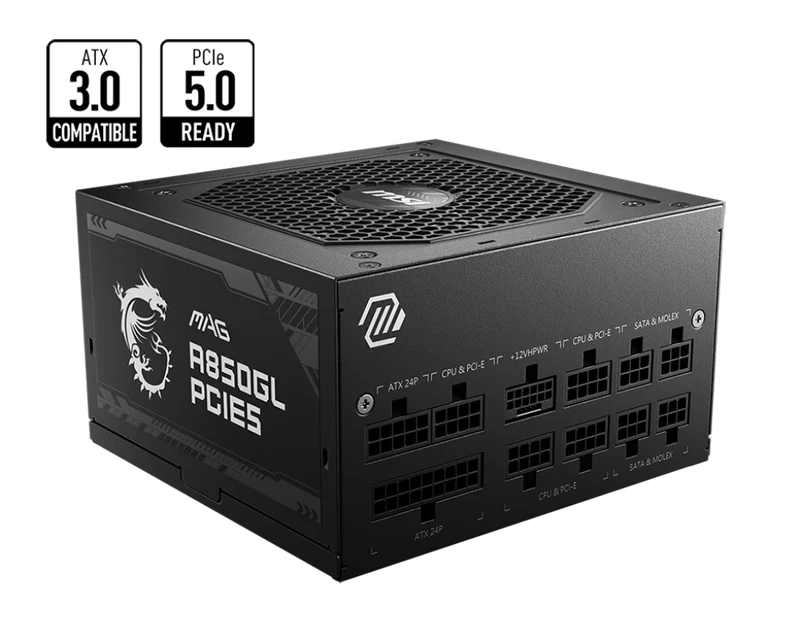

- ATX 3.1 kompatibel, nativer PCIe 5.1 Anschluss
- Unterstützt Grafikkarten der NVIDIA® GeForce RTX™ 40 Serie
- Vollständig modulares Design, flache Kabel
- 80 Plus Gold Zertifizierung für hohe Effizienz
- Aktives PFC-Design, industrieller Schutz mit OVP, OCP, OPP, OTP, SCP, UVP

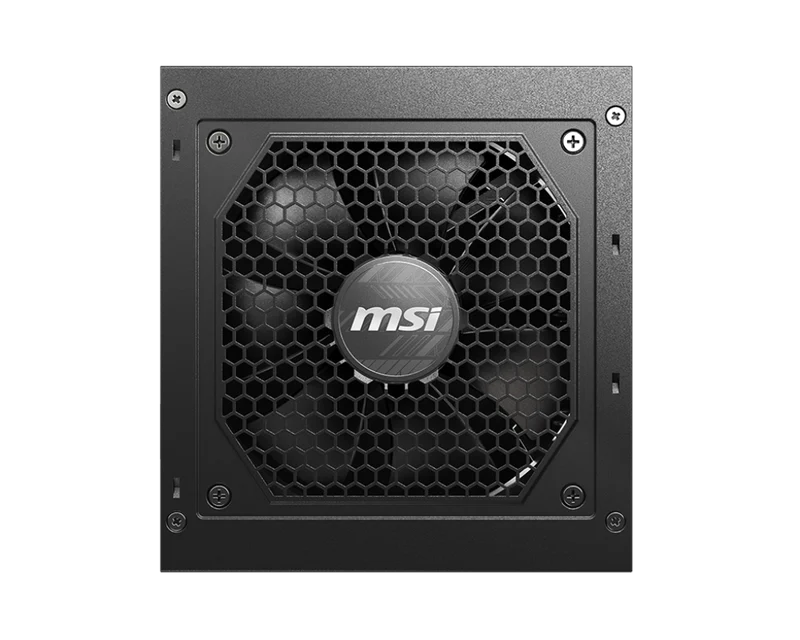

- 120mm Lüfter mit dynamischen Kugellager
- LLC-Vollbrückentopologie mit DC-DC-Modulentwurf
| WEIGHT (CARD) | 169g |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Dimensions | 120mm x 120mm x 25.6mm |
| Modular | Yes (full modular) |
| Fan Bearing | Fluid Dynamic Bearing |
| Bearing Type | Hydro-Dynamic Bearing |
| Rated Speed | 500 - 1800 ±15% RPM |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
| Input Voltage | 100~240 VAC |
| Air Flow | 19.79 - 71.27 CFM |
| Static Air Pressure | 0.16 - 2.09 mm-H20 |
| Input Frequency | 47-63Hz |
| Connector | 4-Pin PWM/DC |

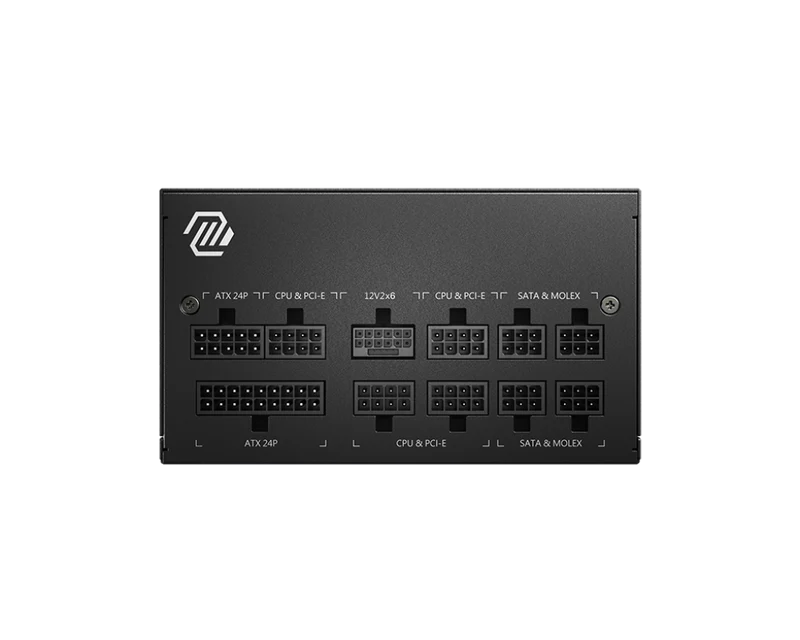

| ATX (24 pin) | 1 |
| Life Expectancy | MTTF 150,000 Hours (25℃) |
| EPS (4+4 PIN) | 2 |
| Fan Size | 120 mm |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PCI-E (6+2 pin) | 4 |
| PFC Type | Active PFC |
| SATA (15 pin) | 8 |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
