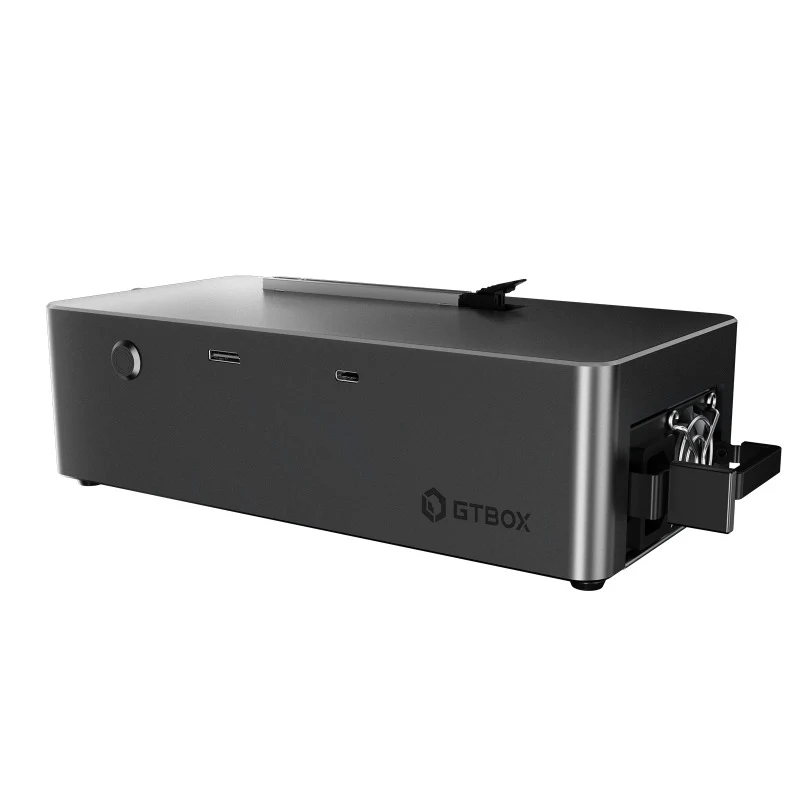

GTBOX G-DOCK EGPU docking station with OCulink Port Built-in Huntkey 800W Power Supply Supports TGX interface hot-swap（No Graphics Card）

Note: The graphics card is an RTX 4070 with a 12-pin connector，models like the RTX 4080 and above are not compatible with the G-DOCK.

This external GPU dock does not support Mac computers， For laptops, as long as they have USB4 or OCuLink ports, compatibility can be achieved.
This external GPU may have compatibility issues with Minisforum machines, including the GPD G1.
It supports ASUS ROG handheld devices from the second generation onwards. Computers with CPUs prior to the 7840U series may have compatibility issues; it is fully compatible with CPUs from the 7840U series and later, such as the  8840, and so on.
Please note that under power-on conditions, do not hot-plug or unplug the OCulink cable, as there is a risk of damaging the computer.



Caveats:

1) The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
(2) The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.
3）The built-in power supply is for Dock use only, please do not use it for other purposes.
4）Hot plugging and unplugging is only available for TGX devices.

Main Features:

GTBOX G-DOCK GPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, 1.5KG, and the graphics card is not limited in length.

800W Power:

GTBOX G-DOCK has a built-in customized Huntkey 800W power supply, which can realize the power supply one-line communication and comes with a hub design.

Compatible with

  GTBOX G-DOCK is compatible with most of the EGPUs on the market today.

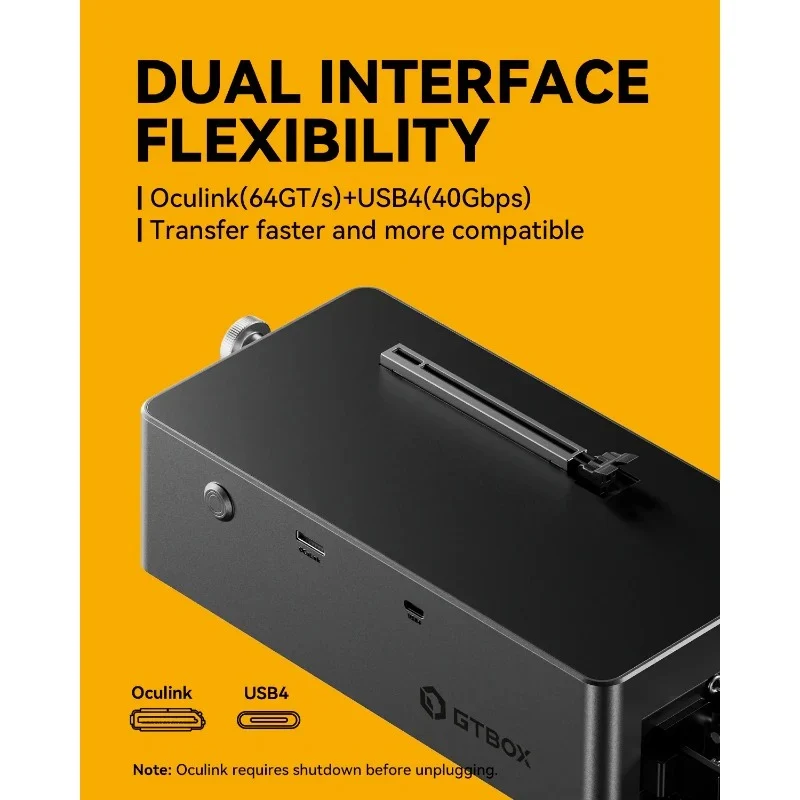

OCuLink & TGX Ports

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Specification:

Power: 800W

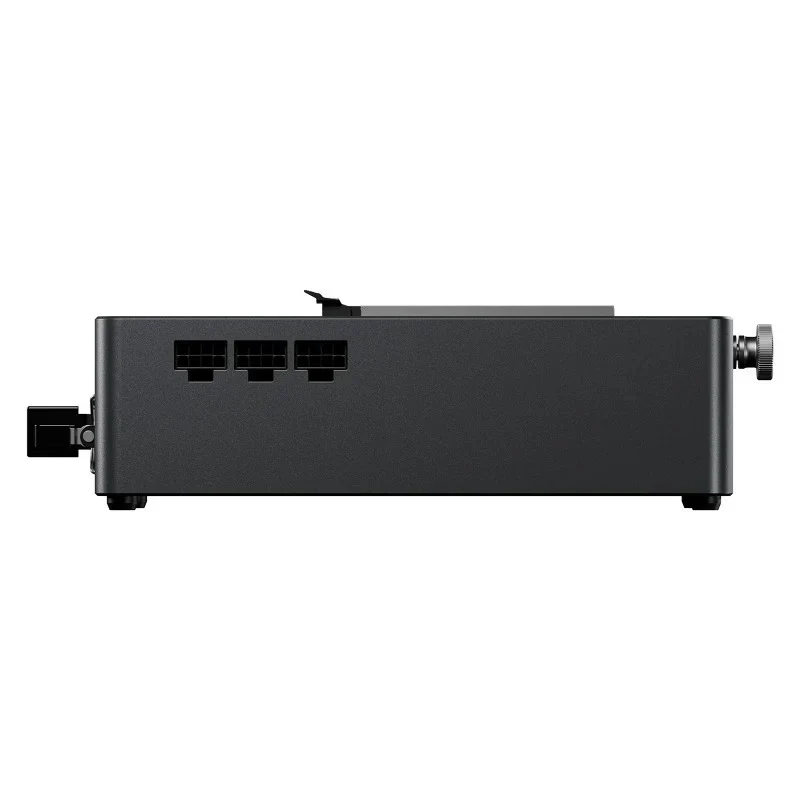

Interface configuration:  1 OCuLink interface, 1 X USB4 port ）2 x 8-pin graphics card power connectors

Device support:  Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input:  AC 220V~ 50/60Hz
OS: Support Windows (Win 11 22h2 or higher recommended)
Size:  22.5CM*11CM*6CM

What In Box

• 1 x GTBOX G-DOCK EGPU Dock
• 1 x Oculink cable
• 1 x Power supply
• 2 x Switch Cable
• 1 x USB4 cable
• * The GPU is not included.
